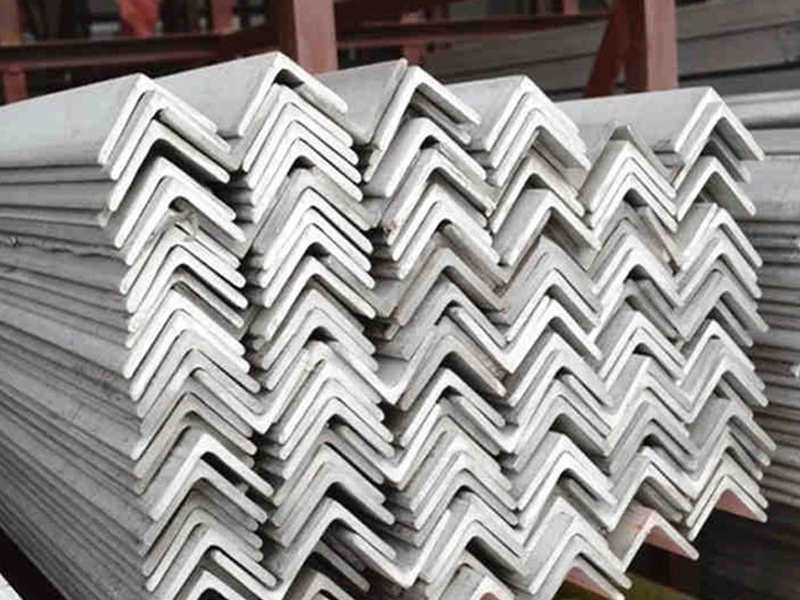

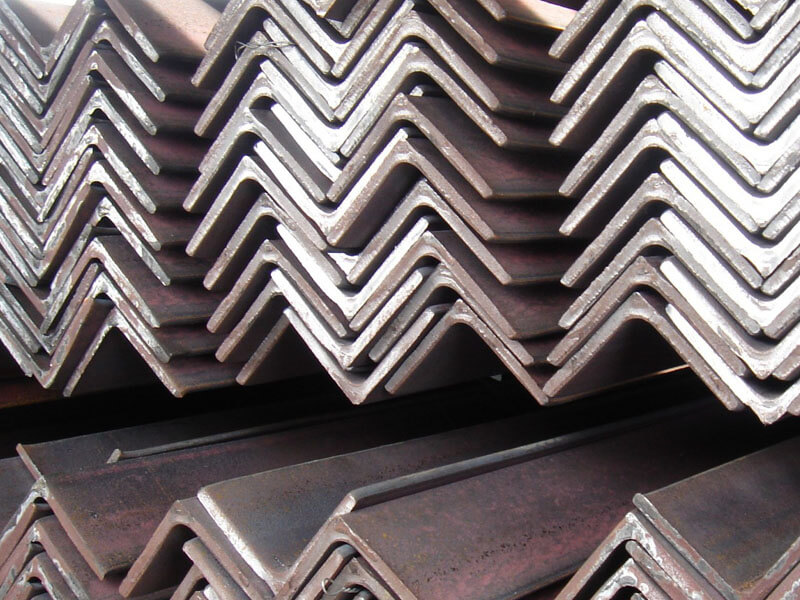

Angels and Channels
We offer our customers a wide range of Angles & Channels widely find its applications in different industrial & commercial sectors. Also these are scratch-proof and corrosion resistant and offer greater load bearing capacity. These are available in various dimensions of width, leg height, material thickness and other parameters.
Mild Steel H Beam | Mild Steel I Beam
The Mild Steel Beams, which we offer, are extensively used for construction purposes for making steel-frames for buildings and bridges. MS Beams exported by us are highly durable and have high tensile strength. We are one of the most reliable M S Beams Suppliers. Our MS Beams are available in 2 types- Mild Steel H Beam (available from 100mm to 1040mm) and Mild Steel I Beam (available from 100mmto 400mm).

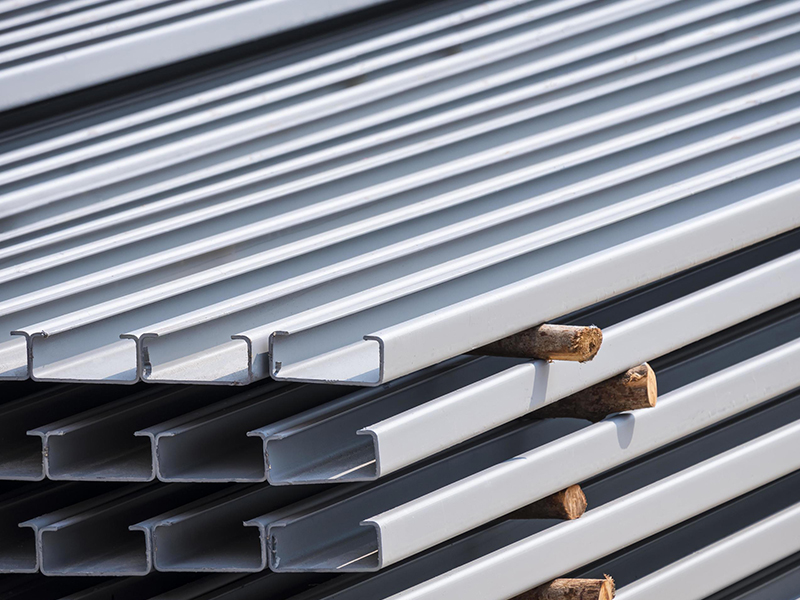

U-channels | C-channels
We are engaged in exporting of Mild Steel Channel, which is widely used as structural support in construction works. Available in different sizes and shapes, the MS Channels are procured from reliable sources, which use high grade steel that adds anti-corrosion properties and high tensile strength to the finished range.We are rated among the leading MS Channels Exporters and Mild Steel U Channels Suppliers.
TECHNICAL SPECIFTCATIONS
Dimension And Properties As Per lSI SpecHicatlon IS: 2012-1991
| Designation | Depth Of Section | Width Of Flanges | Thickness Of- Web | Weight- mtr | Sectional – Area | Module Of Section | |
| H | b | t | w | a | Zxx | Zyy | |
| (mm) | (mm) | (mm) | (kg) | (cm2) | (cm2) | (cm2) | |
| ISMC75 | 75 | 40 | 4.8 | 7.1 | 9.1 | 20.3 | 4.7 |
| ISBC 100 | 100 | 50 | 5.0 | 9.6 | 12.2 | 37.3 |
7.5 |
| ISMC 125 | 125 | 85 | 5.3 | 13.1 | 18.7 | 88.0 | 13.5 |
| ISMC 150 | 150 | 75 | 5.7 | 16.8 | 21.3 | 105.0 | 19.4 |
| ISMC 175 | 175 | 75 | 6.0 | 19.6 | 24.4 | 139.8 | 22.8 |
| ISMC200 | 200 | 75 | 6.2 | 22.3 | 28.5 | 181.0 | 26.4 |
| ISMC250 | 250 | 80 | 7.2 | 30.6 | 39.0 | 307.0 | 36.4 |
| ISMC300 | 300 | 90 | 7.8 | 36.3 | 46.3 | 428.0 | 47.1 |
| ISMC400 | 400 | 100 | 8.8 | 50.1 | 83.8 | 760.0 | 67.0 |
